Curves

[70059] 250mm Curve 9¹³/₁₆" Radius

250mm Curve 9¹³/₁₆" Radius

Reference #: 70059

Curved Section 22.5 Degrees with 250mm Radius (9 13/16")

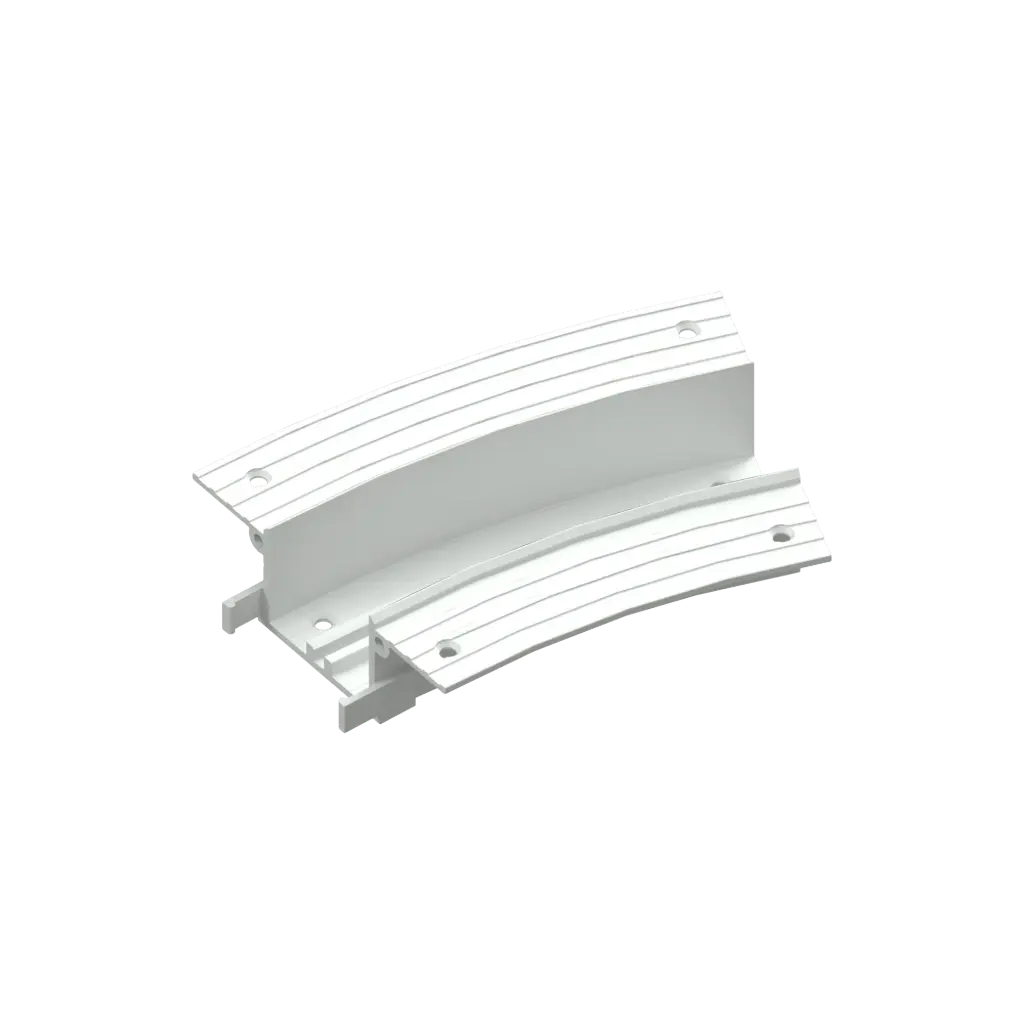

[70060] 290mm Curve 11⁷/₁₆" Radius

290mm Curve 11⁷/₁₆" Radius

Reference #: 70060

Curved Section 22.5 Degrees with 290mm Radius (11 7/16")

[70061] 300mm Curve 11¹³/₁₆" Radius

300mm Curve 11¹³/₁₆" Radius

Reference #: 70061

Curved Section 22.5 Degrees with 300mm Radius (11 13/16″)

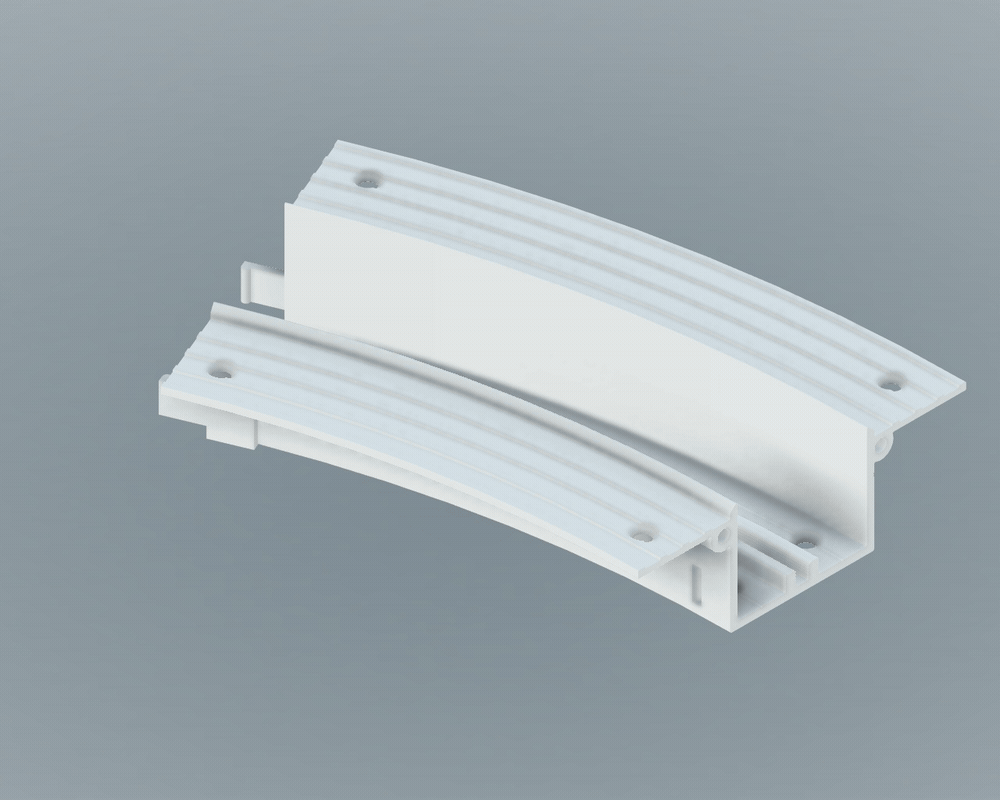

[70062] 330mm Curve 13" Radius

330mm Curve 13" Radius

Reference #: 70062

Curved Section 22.5 Degrees with 330mm Radius (13")

[70065] 365mm Curve 14⅜" Radius

365mm Curve 14⅜" Radius

Reference #: 70065

Curved Section 22.5 Degrees with 365mm Radius (14 3/8")

[70066] 440mm Curve 17⁵/₁₆" Radius

440mm Curve 17⁵/₁₆" Radius

Reference #: 70066

Curved Section 22.5 Degrees with 440mm Radius (17 5/16″)

[70067] 480mm Curve 18⅞" Radius

480mm Curve 18⅞" Radius

Reference #: 70067

Curved Section 22.5 Degrees with 480mm Radius (18 7/8″)

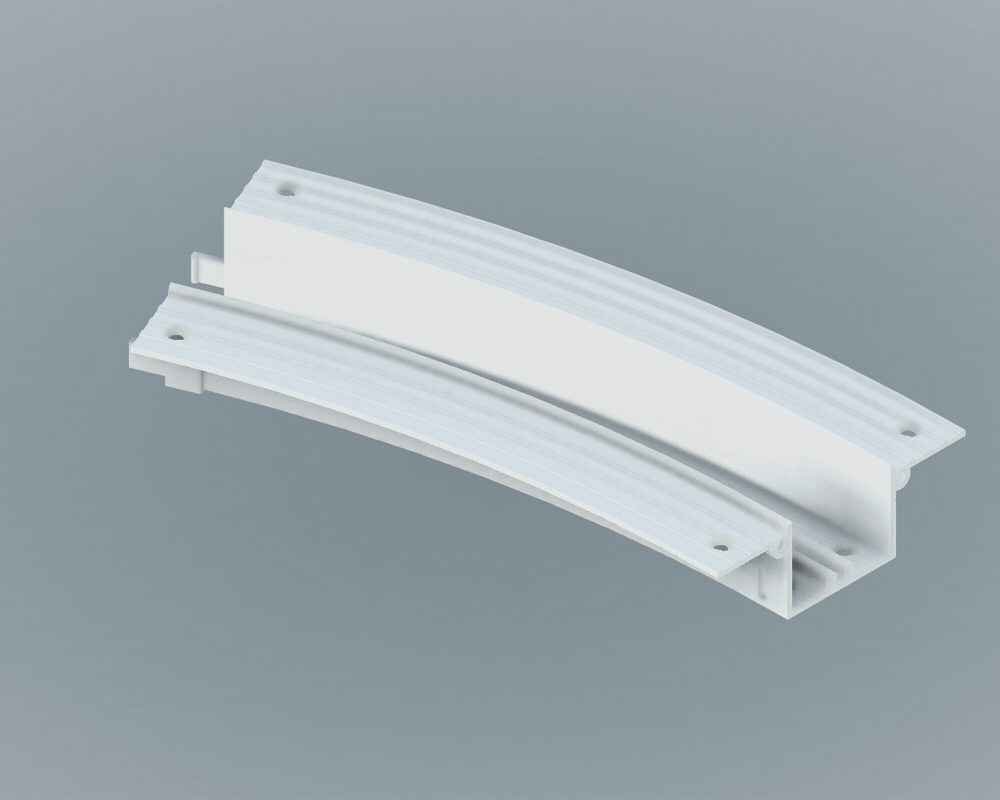

[70063] 508mm Curve 20" Radius

508mm Curve 20" Radius

Reference #: 70063

Curved Section 22.5 Degrees with 508mm Radius (20'')
