TRACKTRIM

DESIGNED TO DISAPPEAR

Tracktrim® by Blindspace is a perfect fit solution to recess manual and electric curtain tracks. The track and end set are installed flush with the ceiling during construction to form a cavity matching the drapery system and can be painted to match the ceiling. Standard curved sections are available to fit corners, curved walls, bay windows and other applications. When curtain tracks are installed, the result is a minimalist design where curtain tracks fully blend in, flush with the ceiling.

*two splice pins per motor/return box
*two splice pins to connect tracks
*four small splice pins for curves

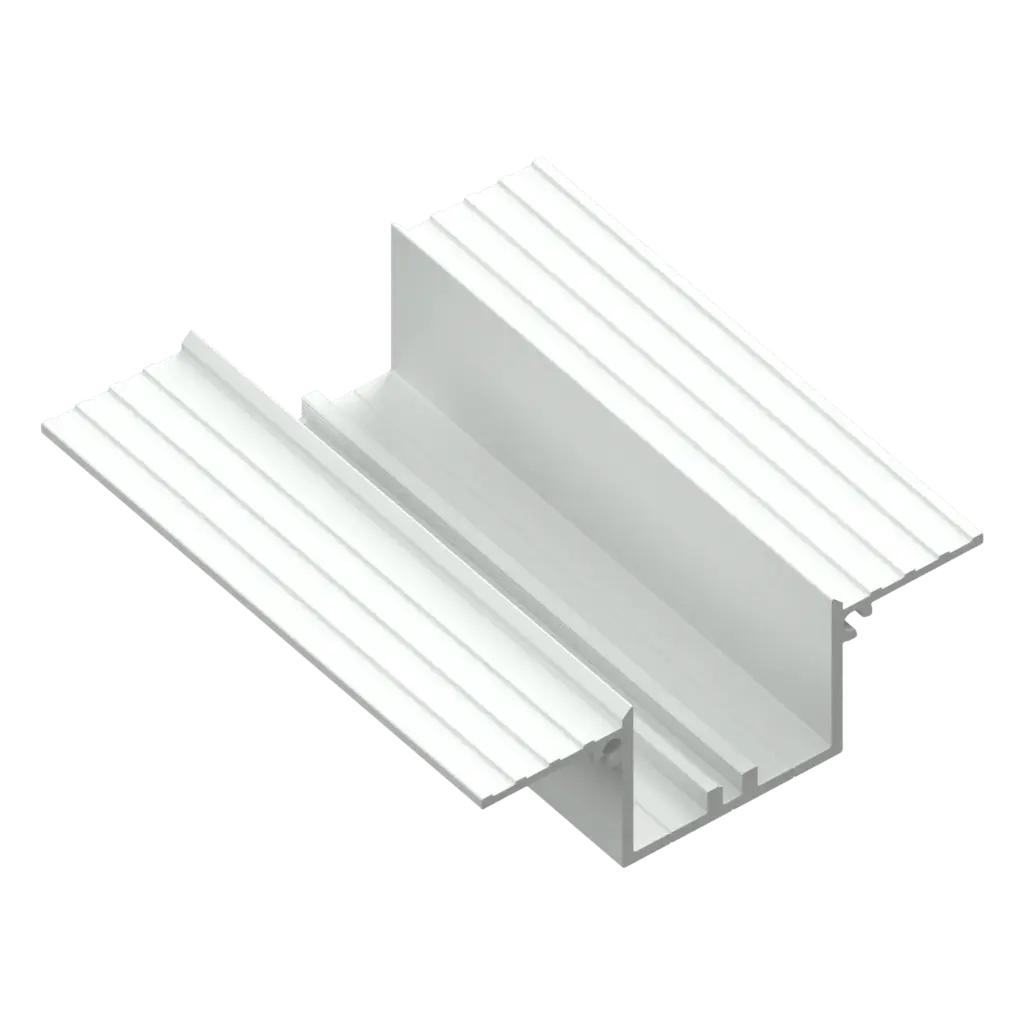

Track Trim with screw channel 6'7"

TrackTrim Track with Screw Channel 2m (6'7'')

Crestron Motor Box

Motor Box w Flanges for Crestron System

Crestron Return Box

Return Box w Flanges for Crestron System

Crestron Fixing Bracket

Fixing Bracket for Crestron Curtain Track

250mm Curve 9¹³/₁₆" Radius

Curved Section 22.5 Degrees with 250mm Radius (9 13/16")

290mm Curve 11⁷/₁₆" Radius

Curved Section 22.5 Degrees with 290mm Radius (11 7/16")

300mm Curve 11¹³/₁₆" Radius

Curved Section 22.5 Degrees with 300mm Radius (11 13/16″)

330mm Curve 13" Radius

Curved Section 22.5 Degrees with 330mm Radius (13")

365mm Curve 14⅜" Radius

Curved Section 22.5 Degrees with 365mm Radius (14 3/8")

440mm Curve 17⁵/₁₆" Radius

Curved Section 22.5 Degrees with 440mm Radius (17 5/16″)
2 Curved Sections make a 45 Degree angle
4 Curved Sections make a 90 Degree angle

480mm Curve 18⅞" Radius

Curved Section 22.5 Degrees with 480mm Radius (18 7/8″)

508mm Curve 20" Radius

Curved Section 22.5 Degrees with 508mm Radius (20'')

Lutron motor end without skim flanges

Lutron motor end without skim flanges

Lutron Return Ends Without Skim Flanges

Lutron return end without skim flanges
